2 WAY / 3WAY BALL VALVES
We are the leading 2-Way and 3-Way Instrumentation Ball Valve Manufacturers in India; we believe in delivering all types of products with innovative and complete range.
Our 2-way and 3-way ball valves are unique and precise in design; all manufactured valves are supplied to our clients only after passing stringent quality checks. The valves supplied by us perform well in both low and high temperatures.
AHP2WV / AHP3WV

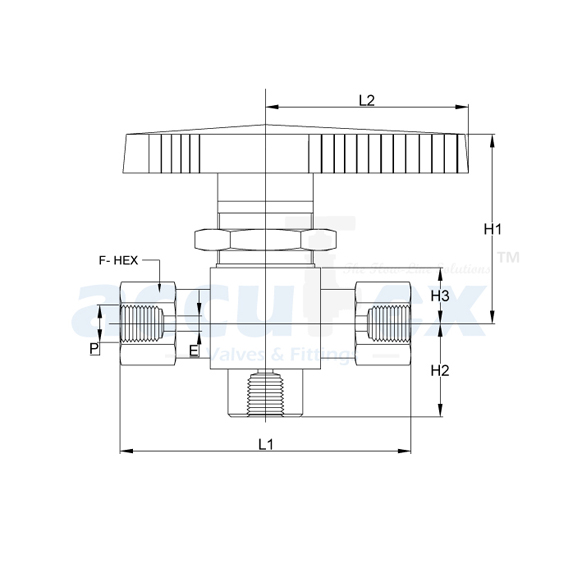

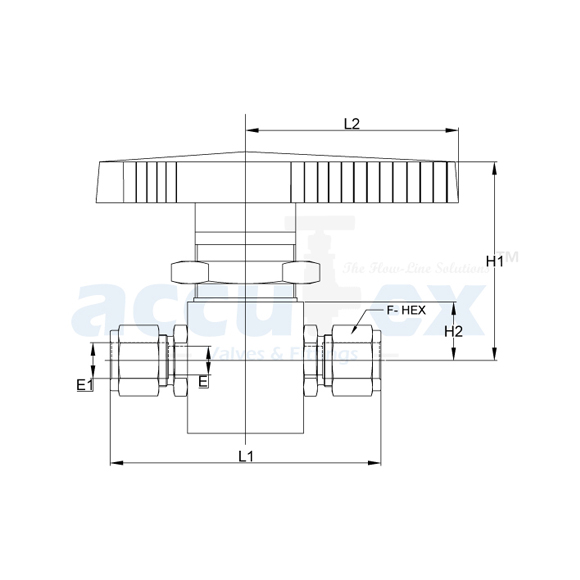

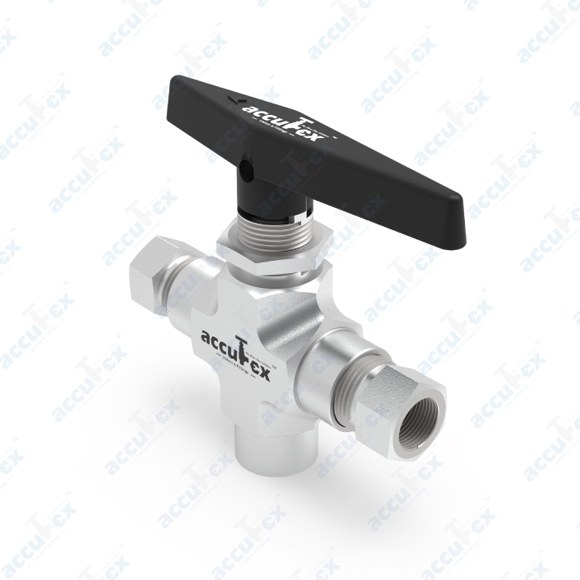

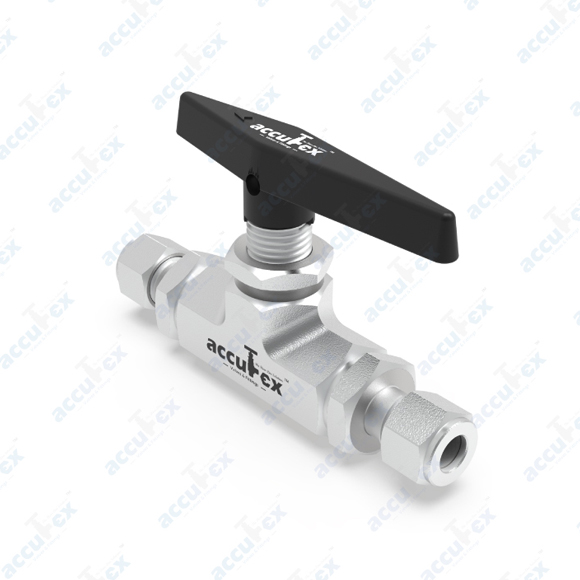

High Pressure 2 Way & 3 Way Ball Valves
Features:
- Panel mounting
- Compact design
- Available in SS 316
- Variety of end configurations
- Trunnion ball design with bearing support
Operating Range:
- Pressure : Up to 6000 psig (408 bar) at CWP
- Temperature : ‐45 °C to 160 °C
Connection & Size:
- Size : 6 mm to 16 mm Tube OD Pipe Thread Size : 1/4” to 1/2”
- Connection : NPT & BSPT pipe connections
Application:
- Instrument air lines
- General plant service
- CNG & other gas application
- High pressure instrument lines
