BLEED VALVES
We are Manufacture, Supply and Export Bleed Valves with innovative technology. Our expert team designs and manufactures world class Bleed Valves to satisfy our clients.
Bleed valves generally use a threaded bleed screw to open or close. This valve vents the pressure from inside the system or releases the media. We are highly focused on delivering a wide range of Bleed Valves and Instrumentation Valves products to the clients.
ABV

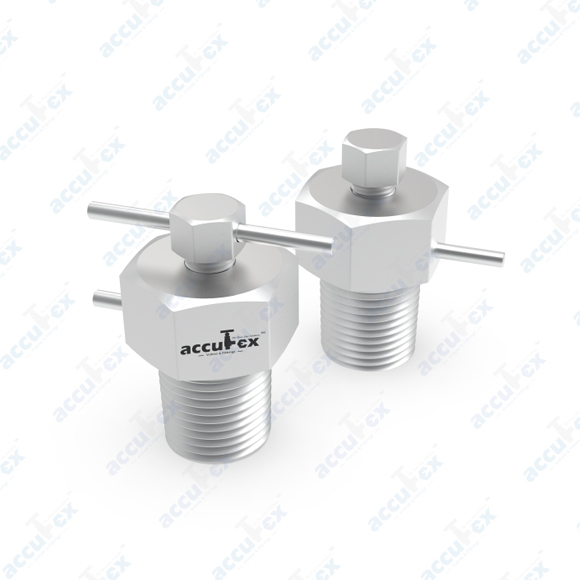

Bleed Valves
Features:
- Available in SS 316
- Variety of end configurations
- Compact and convenient installation
- Vent tube directs excess liquid or gas from system line
Operating Range:
- Pressure : Up to 10000 psig (689 bar) at CWP
- Temperature : ‐35 °C to 430 °C
Connection & Size:
- Size : Pipe Thread Size : 1/8” to 1/2”
- Connection : Male NPT, BSPT, SAE Pipe connections
Application:
- Venting
- Instrument isolation
- General plant service
- Hydraulic and Pneumatic
- Pressure measurement devices
