PURGE VALVES
We are committed to providing the Top Quality Purge Valves. We manufacture purge valves as per the requirement of industries; our valves are designed to facilitate simultaneous draining, flushing and refilling of any hydraulic system.
We conduct rigorous quality checks and testing at every stage of the manufacturing process, so that we supply and export purge valves with high quality and zero defects.
APV

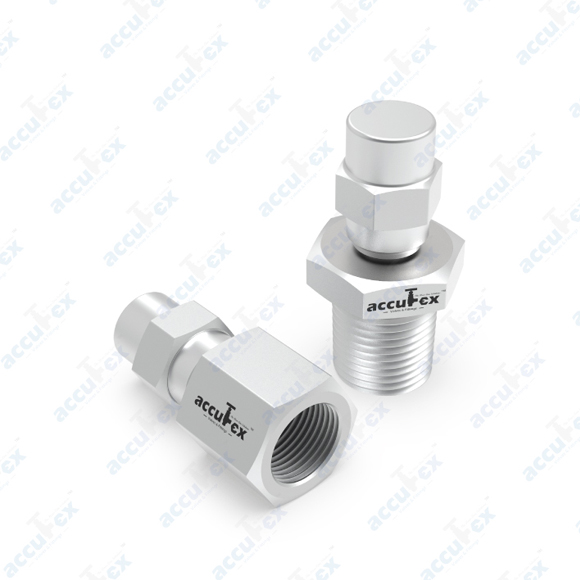

Purge Valves
Features:
- Available in SS 316
- Vent hole in the cap bleeds
- Variety of end configurations
- Compact and convenient installation
Operating Range:
- Pressure : Up to 4000 psig (276 bar) at CWP
- Temperature : ‐30 °C to 220 °C
Connection & Size
- Size : 6 mm to 10 mm Tube OD
- Pipe Thread Size : 1/8” to 1/2”
- Connection : Male/Female NPT, SAE Pipe connections
Application:
- Venting
- Instrumentation
- General plant service
- Hydraulic and Pneumatic
