RELIEF VALVES
We believe in delivering the High Quality Relief Valve or Pressure Relief Valve with innovative technology to our customers. This type of valve acts as a safety valve. Relief Valve and Pressure Relief Valve are used to control or limit the pressure in the system. This type of valve is used to prevent fires due to process malfunctions, equipment failures, explosions, or overpressure in pressure lines.
We manufacture Relief Valves or Pressure Relief Valves by simple design, which we supply and export to our customers after undergoing testing procedures as per international standards.

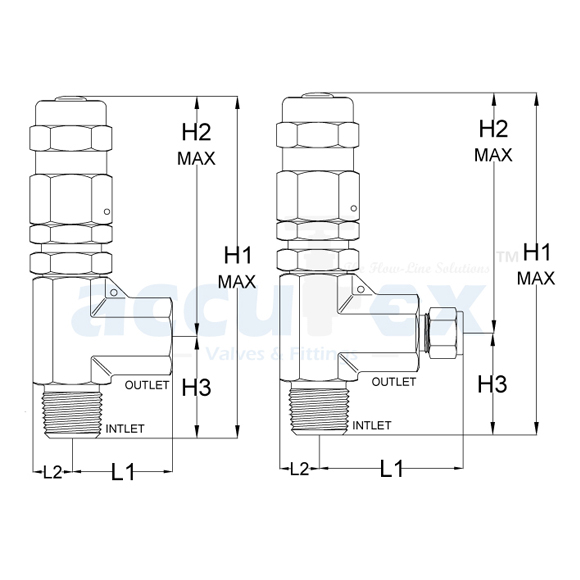

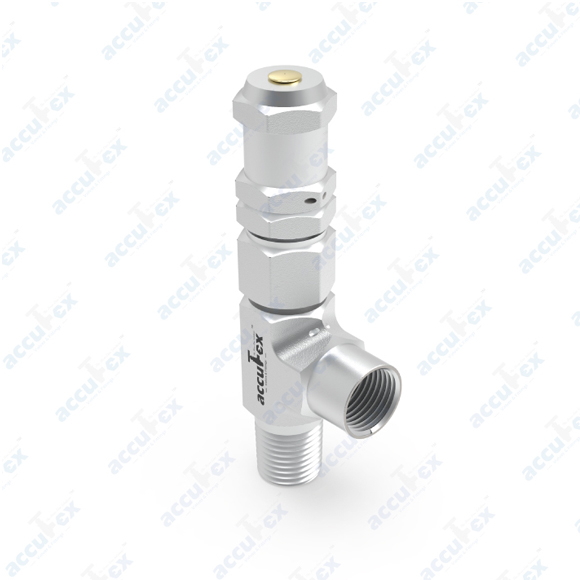

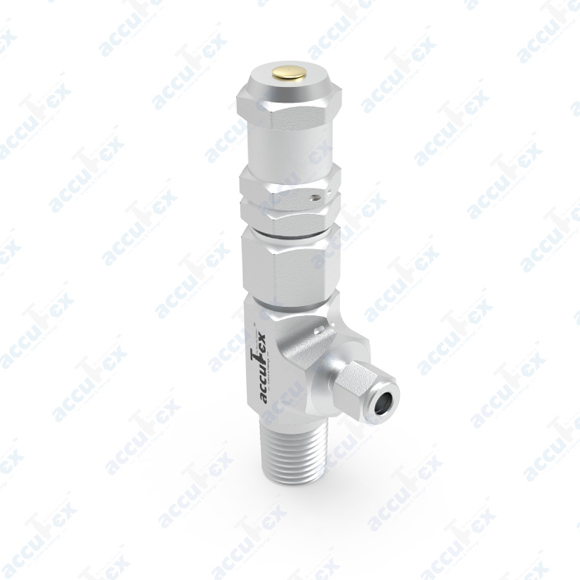

ARV
Relief Valves
Features:
- Compact design
- Available in SS 316
- Lock wire feature secure a given pressure setting
- Color coded springs and labels to indicate spring cracking range
Operating Range:
- Pressure : Up to 7000 psig (483 bar)
- Cracking Pressure : Adjustable from 50 to 5500 psig (3.4 to 379 bar)
- Temperature : ‐20 °C to 200 °C with FKM O-Ring
Connection & Size:
- Size : 6 mm, 12 mm Pipe Thread Size : 1/4”
- Connection : NPT, BSPP, BSPT Pipe Threads
Application:
- General plant service
- Instrument Isolations
- Hydraulic and Pneumatic
- Pressure measurement devices
