BALL VALVES (LOW / MEDIUM PRESSURE)
We are a Leading Manufacturer of Instrumentation Ball Valves for Low and Medium Pressure Applications in Mumbai, India. Our various types of low and medium pressure ball valves are manufactured as per the customer’s application and supplied after testing the required pressure.
Our low and medium pressure ball valve products are strong in high-performance, reliability and value that provide smooth operation in various applications. Contact us to buy ball valves for each of your applications.

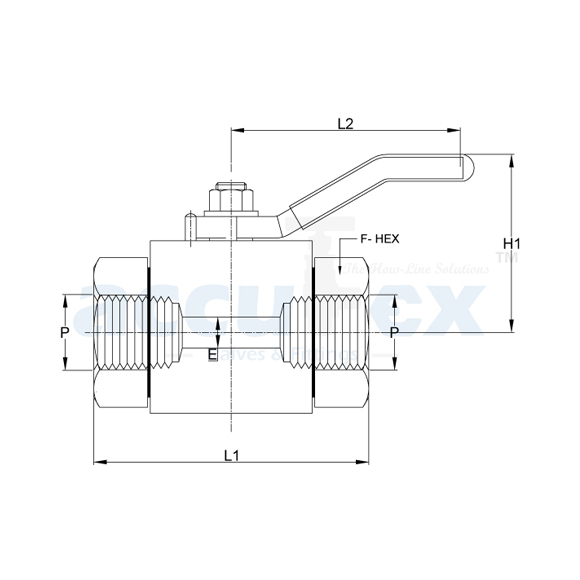

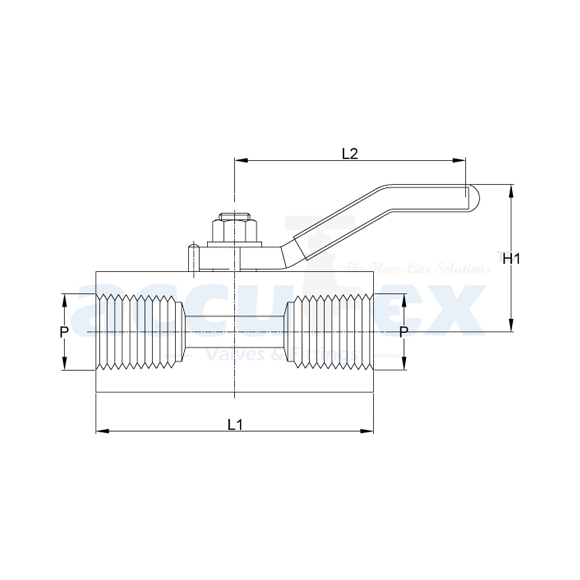

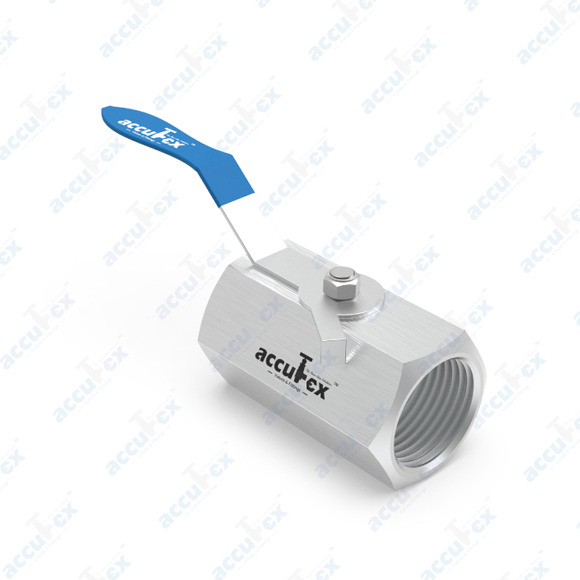

ALPV & AMPV
Low & Medium Pressure Ball Valves
Features:
- PTFE ball seat
- Simple design
- Bi-directional flow
- Floating ball design
- Variety of end configurations
- Available in SS Grade & Other Alloys
- One / Three piece hexagon body design
Operating Range:
- Pressure : Up to 5000 psig (345 bar) at CWP with PTFE & Peek seat
- Temperature : ‐20 °C to 210 °C with FKM O-Ring, Peek/PTFE packing
Connection & Size:
- Size : 6 mm to 25 mm Tube OD Pipe Thread Size : 1/4” to 1”
- Connection : Male/Female NPT, BSPP, BSPT pipe connections
Application:
- Instrument air lines
- General plant service
- Low & Medium pressure instrument lines
