TOGGLE VALVES
We cater to the needs of the customers by manufacturing Good Quality Toggle Valves and Instrumentation Valves. These types of valves are used to quickly open and close the flow; toggle valves are available in manual and pneumatically actuated models.
We manufacture toggle valves with the best raw material, simple design and advanced machinery, we deliver all the valves to our customers only after strict quality control. We have toggle valves available in sizes ranging from 1/8″ to 1/2″.

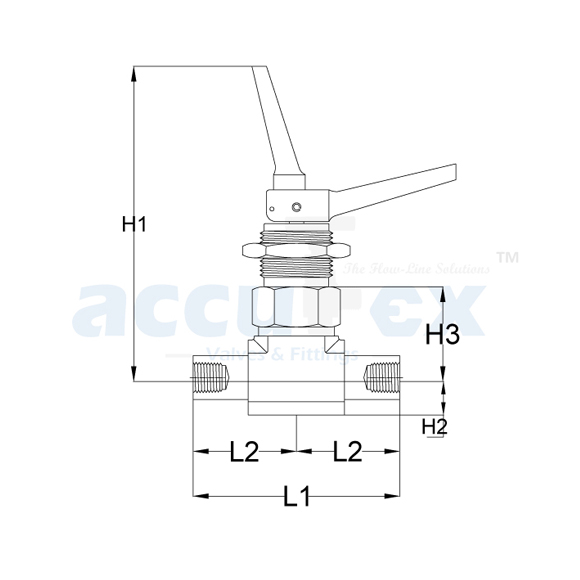

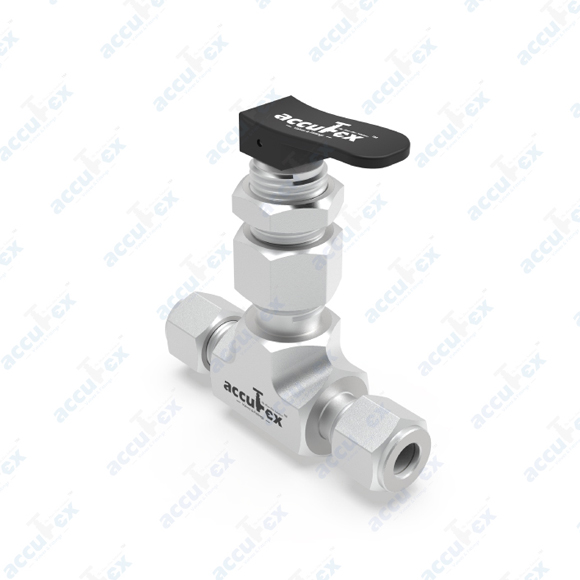

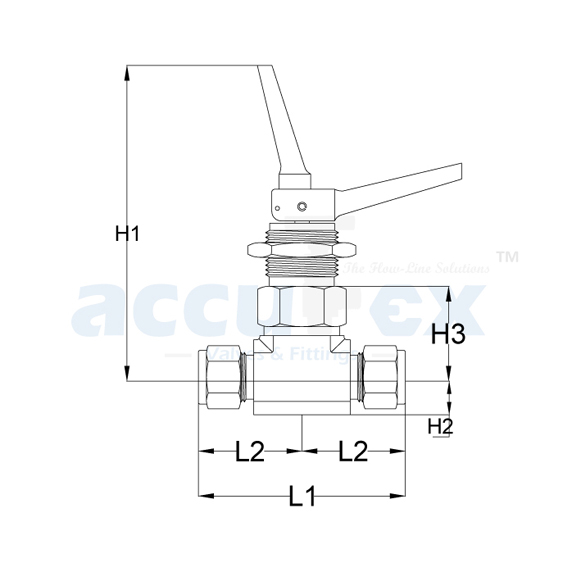

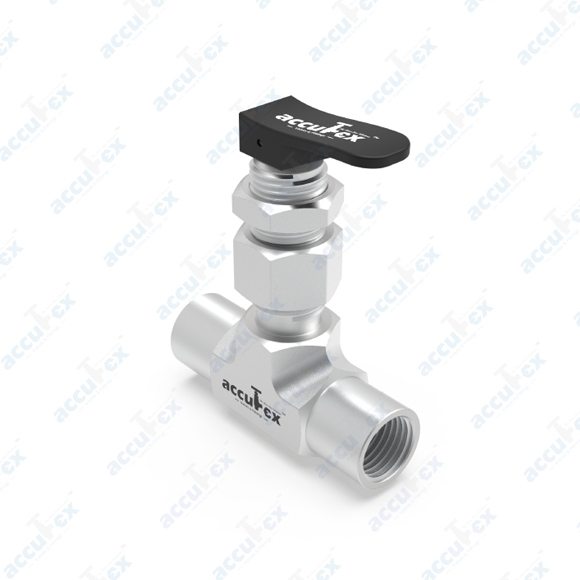

ATV
Toggle Valves
Features:
- Easy to operate
- Panel mountable
- Available in SS 316
- Rugged and compact design
- Variety of end configurations
Operating Range:
- Pressure : Up to 3000 psig (206 bar) at CWP
- Temperature : ‐20 °C to 90 °C
Connection & Size:
- Size : 3 mm to 12 mm Tube OD
- Pipe Thread Size : 1/8” to 3/8”
- Connection : Male/Female NPT, SAE Pipe connections
Application:
- Venting
- General plant service
- Hydraulic and Pneumatic
- Pressure measurement devices
